Legrand

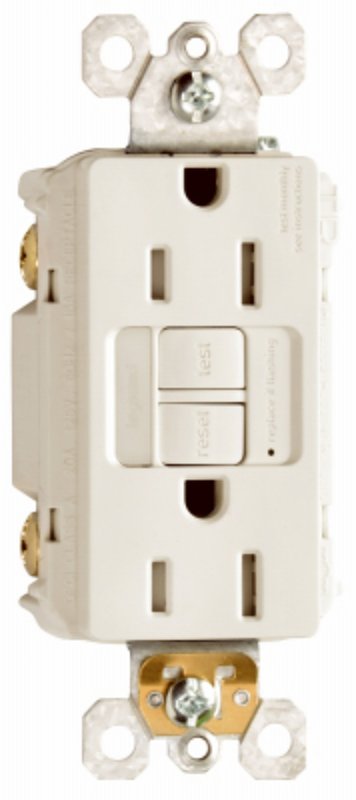

Legrand radiant 1597NTLTRLACCD4 Nightlight/GFCI Receptacle, 2 -Pole, 15 A, 125 VAC, Back, Side Wiring

$22.99$22.99
  • Color: Light Almond
  • Current Rating: 15 A
  • Dimensions: 1.73 in W x 1.03 in D x 4.2 in H
  • Frequency Rating: 60 Hz
  • NEMA Configuration: 5-15R
  • Model #: 1597NTLTRLACCD4
  • UPC #: 785007135688
  • SKU: 0252726

Your shopping list will be used for pickup in-store

Key Features

  • Thinner than competitors' GFCI Receptacles leaves more room for wires in the box
  • Side or internal screw pressure plate back wire with 10 to 14 AWG solid or stranded copper wire and two back wire holes per terminal
  • Conducts an automatic test every 3 s, ensuring it's always ready to protect, If the device fails the test, the trip indicator light red LED flashes to signal that the GFCI should be replaced
  • Equipped with proven SafeLock protection feature, if critical components are damaged and protection is lost, power to the receptacle is disconnected
  • Patented shutter system helps prevent improper insertion of foreign objects
  • Mounting screws are shipped captive in the device and wallplate for easier installation
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles
  • Prevents line-load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
  • Dual-direction test and reset button colors match the device face

Item Specifications

ColorLight Almond
Current Rating15 A
Dimensions1.73 in W x 1.03 in D x 4.2 in H
Frequency Rating60 Hz
NEMA Configuration5-15R
Number of Poles2
Number Of Wires3
Operating Temperature-35 to 66 deg C
Voltage Rating125 VAC
Wire Size14 to 10 AWG
Wiring TypeBack Side
